Bipolar Stepper Motors Supplier

INTRODUCTION

The Bipolar Stepper motors is a special motor specially designed for accurate control of position and speed.

The biggest characteristics of Bipolar stepper motors is 'digital'.

For each pulse signal from the controller, the stepper motor driven by its drive runs at a fixed angle('one step for short').

Rtelligent’s Bipolar stepper motors are a fundamental component in motion control systems, known for their simplicity and reliability. These motors feature two coils with two leads each, and the magnetic field changes direction as the current polarity switches.

Bipolar steppers offer precise control over rotation and positioning, making them ideal for applications like 3D printers and CNC machines.

Their bidirectional operation and easy interface with control electronics, such as drivers, allow engineers to achieve accurate motion without the need for complex feedback systems. Bipolar stepper motors remain a popular choice for numerous automation and robotics tasks due to their efficiency and cost-effectiveness.

Naming Rule

57
1 A
2 M
3 23
4 -

 ◻
5

  • Base size
  • Step angle type code
    A: 1.8 degrees
    B: 1.2 degrees
    C: 0.72 degrees
  • Motor series code
    M: M series
  • Motor torque
    06:0.6Nm
    30:3.0Nm
    120:12.0Nm
  • Non- standard code
    D: double Shaft
    Z2: With brake

*Model naming rules are only used for model meaning analysis.
For specific optional models, please refer to the details page.

2-PHASE BIPOLAR STEPPER MOTORS

20/28mm series technical specifications

Model Step Angle(○) Holding torque(N.m) Rated current(A) Resistance/phase (ohm) Inductance/phase (mh) Rotor inertia (g.cm2) Shaft diameter(mm) Shaft Length(mm) Length(mm) Weight(Kg)
20AM003 1.8 0.03 0.6 5.7 2.6 3 4 10 33 0.07
20AM005 1.8 0.05 0.6 7.0 3.4 38 4 10 45 0.110
28AM006 1.8 0.06 1.2 1.4 1.0 90 5 20 32 0.11
28AM01 1.8 0.10 1.2 1.8 1.6 130 5 20 41 0.13
28AM013 1.8 0.13 1.2 2.2 2.3 180 5 20 51 0.18

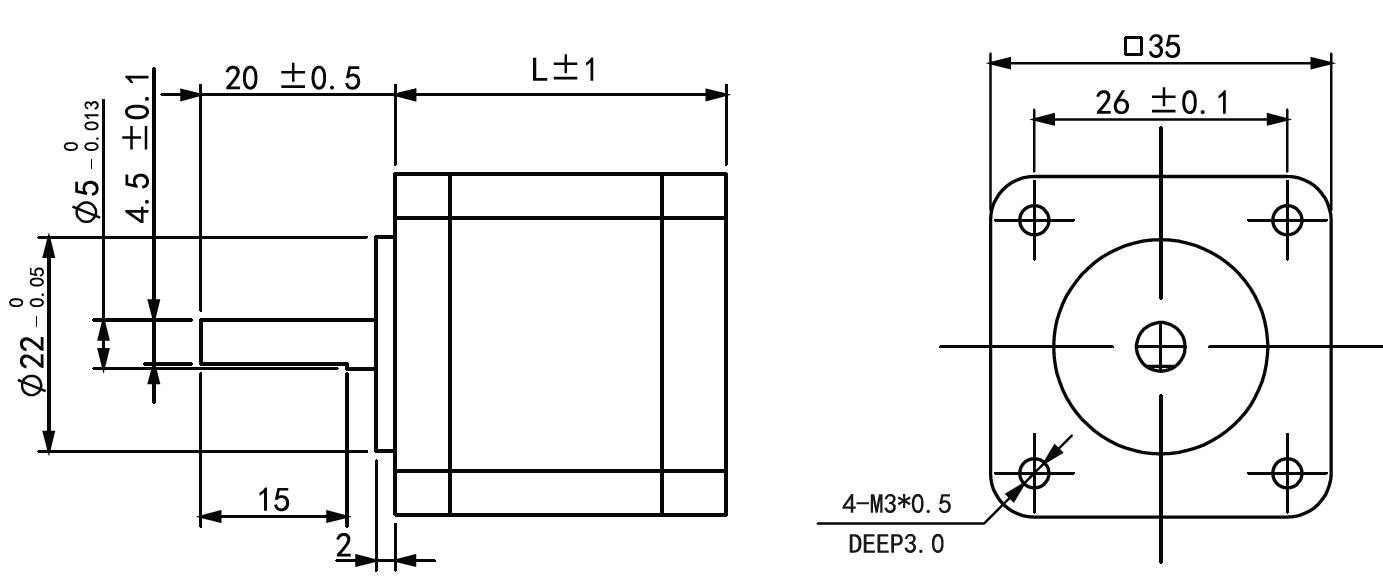

35/39mm series technical specifications

Model Step Angle(○) Holding torque(N.m) Rated current(A) Resistance/phase (ohm) Inductance/phase (mh) Rotor inertia (g.cm2) Shaft diameter(mm) Shaft Length(mm) Length(mm) Weight(Kg)
35A02 1.8 0.2 1.0 3.8 5.3 22 5 20 34 0.18
39A02 1.8 0.2 1.0 4.1 7.1 30 5 20 36 0.28

42mm series technical specifications

Model Step Angle(○) Holding torque(N.m) Rated current(A) Resistance/phase (ohm) Inductance/phase (mh) Rotor inertia (g.cm2) Shaft diameter(mm) Shaft Length(mm) Length(mm) Weight(Kg)
42AM02 1.8 0.2 1.5 1.3 1.9 41 5 24 34 0.23
42AM04 1.8 0.4 1.5 2.6 5.1 57 5 24 40 0.29
42AM06 1.8 0.6 2.0 1.8 3.8 82 5 24 47 0.37
42AM08 1.8 0.8 2.0 1.9 5.0 114 5 24 60 0.48

42mm series technical specifications

Model Step Angle(○) Holding torque(N.m) Rated current(A) Resistance/phase (ohm) Inductance/phase (mh) Rotor inertia (g.cm2) Shaft diameter(mm) Shaft Length(mm) Length(mm) Weight(Kg)
42A01 1.8 0.15 1.0 1.3 1.9 41 5 24 34 0.23
42A02 1.8 0.2 1.2 2.6 5.1 57 5 24 40 0.29
42A03 1.8 0.3 2.0 1.8 3.8 82 5 24 47 0.37
42A08 1.8 0.8 2.0 1.9 5.0 114 5 24 60 0.48

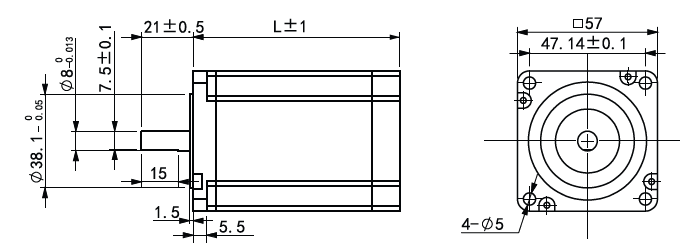

57mm series technical specifications

Model Step Angle(○) Holding torque(N.m) Rated current(A) Resistance/phase (ohm) Inductance/phase (mh) Rotor inertia (g.cm2) Shaft diameter(mm) Shaft Length(mm) Length(mm) Weight(Kg)
57AM13 1.8 1.3 3.0 0.42 1.5 260 8 21 55 0.67
57AM23 1.8 2.3 5.0 0.64 2.7 460 8 21 76 1.03
57AM24 1.8 2.4 5.6 0.41 2.0 460 8 21 80 1.11
57AM26 1.8 2.6 5.0 0.47 2.1 520 8 21 84 1.20
57AM30 1.8 3.0 5.0 0.82 3.7 720 8 21 102 1.48
D57AM30 1.8 3.0 5.0 0.50 2.2 690 8 21 86 1.39

57mm series technical specifications

Model Step Angle(○) Holding torque(N.m) Rated current(A) Resistance/phase (ohm) Inductance/phase (mh) Rotor inertia (g.cm2) Shaft diameter(mm) Shaft Length(mm) Length(mm) Weight(Kg)
57A09 1.8 0.9 2.8 0.42 1.53 260 6.35 21 55 0.67
57A1 1.8 1.3 2.8 0.64 2.65 460 6.35 21 76 1.03
57A2 1.8 2.2 4.0 0.41 2.0 460 8.00 21 80 1.11
57A3 1.8 3.0 5.0 0.82 3.73 720 8.00 21 102 1.48

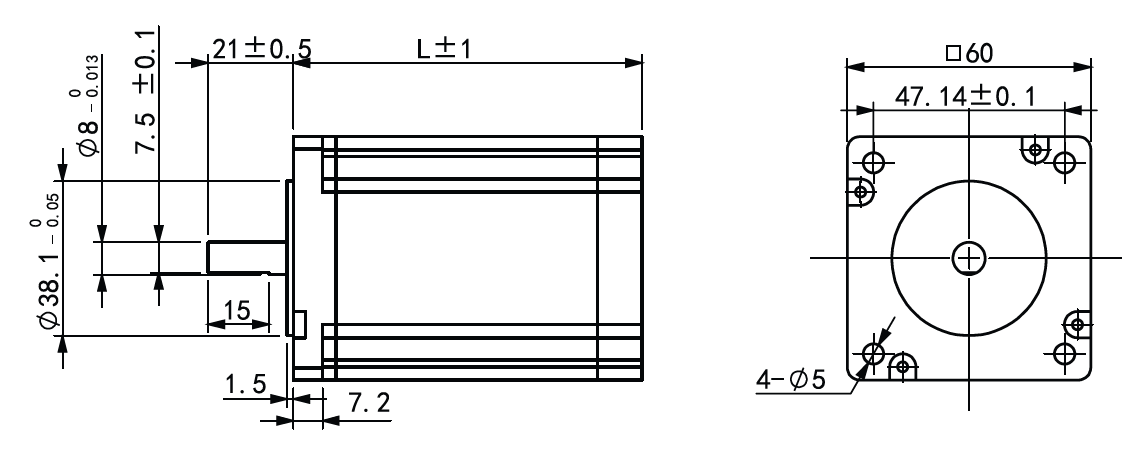

60mm series technical specifications

Model Step Angle(○) Holding torque(N.m) Rated current(A) Resistance/phase (ohm) Inductance/phase (mh) Rotor inertia (g.cm2) Shaft diameter(mm) Shaft Length(mm) Length(mm) Weight(Kg)
60AM21 1.8 2.1 5.0 0.35 1.3 330 8 21 58 0.87
60AM30 1.8 3.0 5.0 0.50 2.2 690 8 21 86 1.39
60AM40 1.8 4.0 5.0 0.86 3.5 880 10 30 120 2.05

86mm series technical specifications

Model Step Angle(○) Holding torque(N.m) Rated current(A) Resistance/phase (ohm) Inductance/phase (mh) Rotor inertia (g.cm2) Shaft diameter(mm) Shaft Length(mm) Length(mm) Weight(Kg)
86AM35 1.8 3.5 4.0 0.81 3.87 800 9.5 32 64 1.70
86AM45 1.8 4.5 6.0 0.41 2.82 1400 12.7 32 78 2.25
86AM65 1.8 6.5 6.0 0.47 4.18 2300 12.7 32 98 2.95
86AM85 1.8 8.5 6.0 0.53 5.54 2800 12.7 32 112 3.67
86AM120 1.8 12 6.0 1.72 8.30 4000 15.875 32 155 5.10
86AM45- 14 1.8 4.5 6.0 0.41 2.82 1400 14 32 78 2.25
86AM65- 14 1.8 6.5 6.0 0.47 4.18 2300 14 32 98 2.95
86AM85- 14 1.8 8.5 6.0 0.53 5.54 2800 14 32 112 3.67
86AM100 1.8 10 6.0 0.75 5.30 3400 14 32 128 4.10
86AM120 1.8 12 6.0 1.72 8.30 4000 14 32 155 5.10

110/130mm series technical specifications

Model Step Angle(○) Holding torque(N.m) Rated current(A) Resistance/phase (ohm) Inductance/phase (mh) Rotor inertia (g.cm2) Shaft diameter(mm) Shaft Length(mm) Length(mm) Weight(Kg)
110A12 1.8 12 6.0 0.37 4.9 7200 19 56 115 6.0
110A20 1.8 20 6.0 0.80 15.0 11000 19 56 150 8.4
110A28 1.8 28 6.5 1.20 22 16200 19 56 201 11.7
130A27 1.8 27 6.0 0.65 13.8 35000 19 45 226 13.0
130A45 1.8 45 7.0 0.90 9.5 48400 19 45 283 19.0

3-Phase stepper motor

57mm series technical specifications

Model Step Angle(○) Holding torque(N.m) Rated current(A) Resistance/phase (ohm) Inductance/phase (mh) Rotor inertia (g.cm2) Shaft diameter(mm) Shaft Length(mm) Length(mm) Weight(Kg)
57BM09 1.2 0.9 3.5 0.50 1.2 260 8 30 55 0.67
57BM15 1.2 1.5 3.5 0.69 1.8 480 8 30 78 1.10

86mm series technical specifications

Model Step Angle(○) Holding torque(N.m) Rated current(A) Resistance/phase (ohm) Inductance/phase (mh) Rotor inertia (g.cm2) Shaft diameter(mm) Shaft Length(mm) Length(mm) Weight(Kg)
86BM20 1.2 2.3 3.0 2.1 7.7 1300 12 32 73 2.0
86BM40 1.2 4.3 4.5 1.1 4.5 2500 12 32 105 2.0
86BM70 1.2 7.0 3.0 4.4 20 3400 14 32 129 4.1
86BM90 1.2 9.0 3.0 5.7 29 4000 14 32 155 5.1

110mm series technical specifications

Model Step Angle(○) Holding torque(N.m) Rated current(A) Resistance/phase (ohm) Inductance/phase (mh) Rotor inertia (g.cm2) Shaft diameter(mm) Shaft Length(mm) Length(mm) Weight(Kg)
110BM80 1.2 8.0 4.3 1.0 11.9 8600 19 40 137 5.5
110BM120 1.2 12 6.0 1.1 12.4 11900 19 40 161 7.1
110BM160 1.2 16 6.5 1.3 19.0 14800 19 40 185 10.7
110BM200 1.2 20 7.0 1.7 22.0 19800 19 40 220 11.0

130mm series technical specifications

Model Step Angle(○) Holding torque(N.m) Rated current(A) Resistance/phase (ohm) Inductance/phase (mh) Rotor inertia (g.cm2) Shaft diameter(mm) Shaft Length(mm) Length(mm) Weight(Kg)
130B23 1.2 23 5.0 0.95 9.5 26800 19(K5) 45 170 13.7
130B36 1.2 36 5.0 1.30 13.1 35000 19(K5) 45 226 18.4
130B50 1.2 50 5.0 1.70 18.0 45500 19(K5) 45 282 22.8
130B50 1.2 50 6.0 0.99 18.3 42500 19(K5) 44 271 16.5

BIPOLAR STEPPER MOTORS DRIVER

INTRODUCTION

Based on the new 32-bit DSP platform and adopting the micro-stepping technology and PID current control algorithm design.

For each pulse signal from the controller, the bipolar stepper motors driven by its drive runs at a fixed angle ('one step for short').

Bipolar Stepper Motors
Bipolar Stepper Motors

Diagram

Bipolar Stepper Motors

Naming Rule

Bipolar Stepper Motors
  • Phases
    2 phase(omitted)
    3: 3 phase
    5: 5 phase
  • Serial Name
  • Match the motor flange size
  • Upgraded version
    X2: Two-in-one
    X3: Three-in-one
  • Function code
    IO: Switch
    D: One-drive-two

*Model naming rules are only used for model meaning analysis.
For specific optional models, please refer to the details page.

Technical Specifications

Model Peak Current A Weight kg Input voltage range Dimension MM Micro-stepping Pulse Level Matching Motor
R42 2.2 0.1 18-48VDC 92.6X 56X21 200-25600 3.3-24V Open loop below 42mm

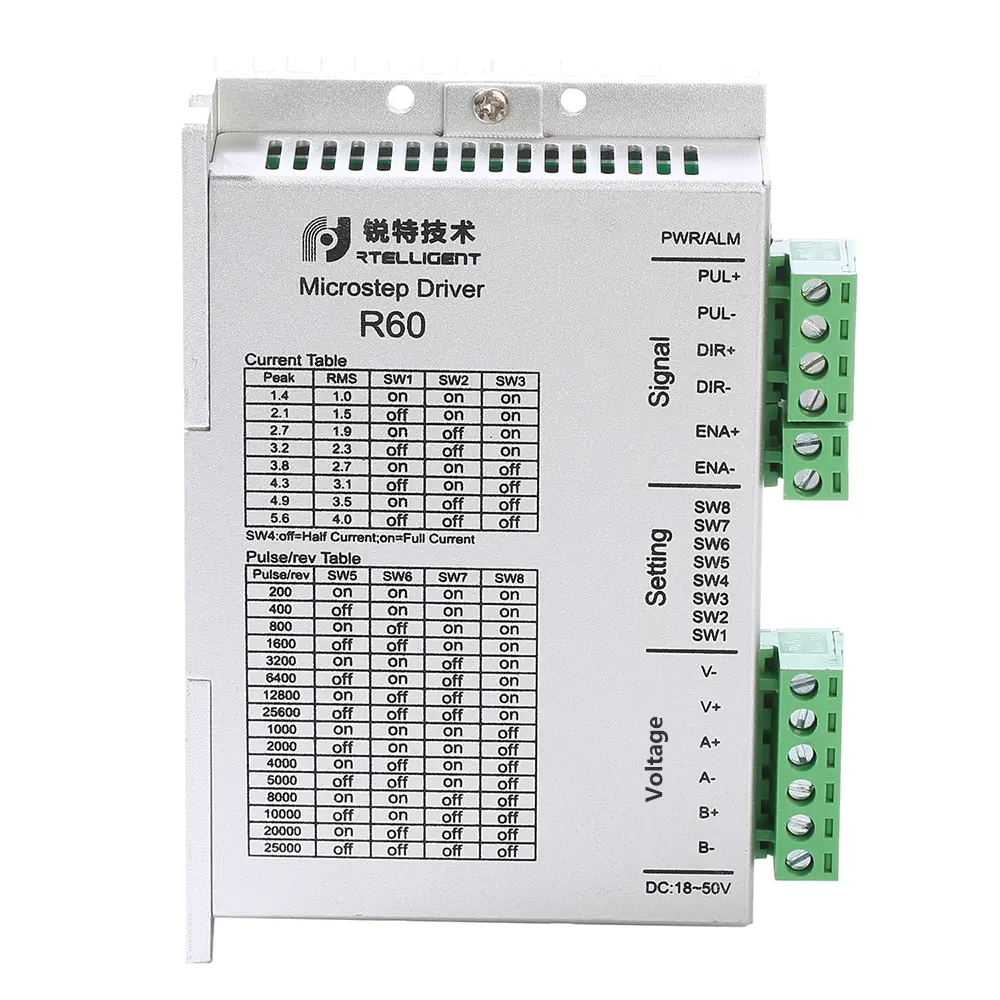

R60 5.6 0.3 18-50VDC 118X 76 X 33 200-25600 3.3-24V Open loop below 60mm
R60-AL 5.6 0.2 18-50VDC 116X 69 X 26.5 200-25600 24V/5V Open loop below 60mm
R86 7.2 0.6 18-80VAC 151 X97X52 400-51200 3.3-24V Open loop below 86mm
R86mini 7.2 0.3 18-80VAC 119X 77X 35 400-25600 3.3-24V Open loop below 86mm
R110PLUS 8 0.9 110-230VAC 178X 109X68 400-60000 3.3-24V Open loop below 110mm
R130 8 1.3 110-230VAC 203X147X78 200-25600 3.3-24V Open loop below 130mm
3R60 8 0.3 18-50VDC 118X 76X 33 400-51200 3.3-24V Open loop 3 phase below 60mm
3R110PLUS 7.2 0.9 110-230VAC 178X 109X68 500-60000 3.3-24V Open loop 3 phase below 110mm
3R130 8 1.3 110-230VAC 203X147X78 400-60000 3.3-24V Open loop 3 phase below 130mm

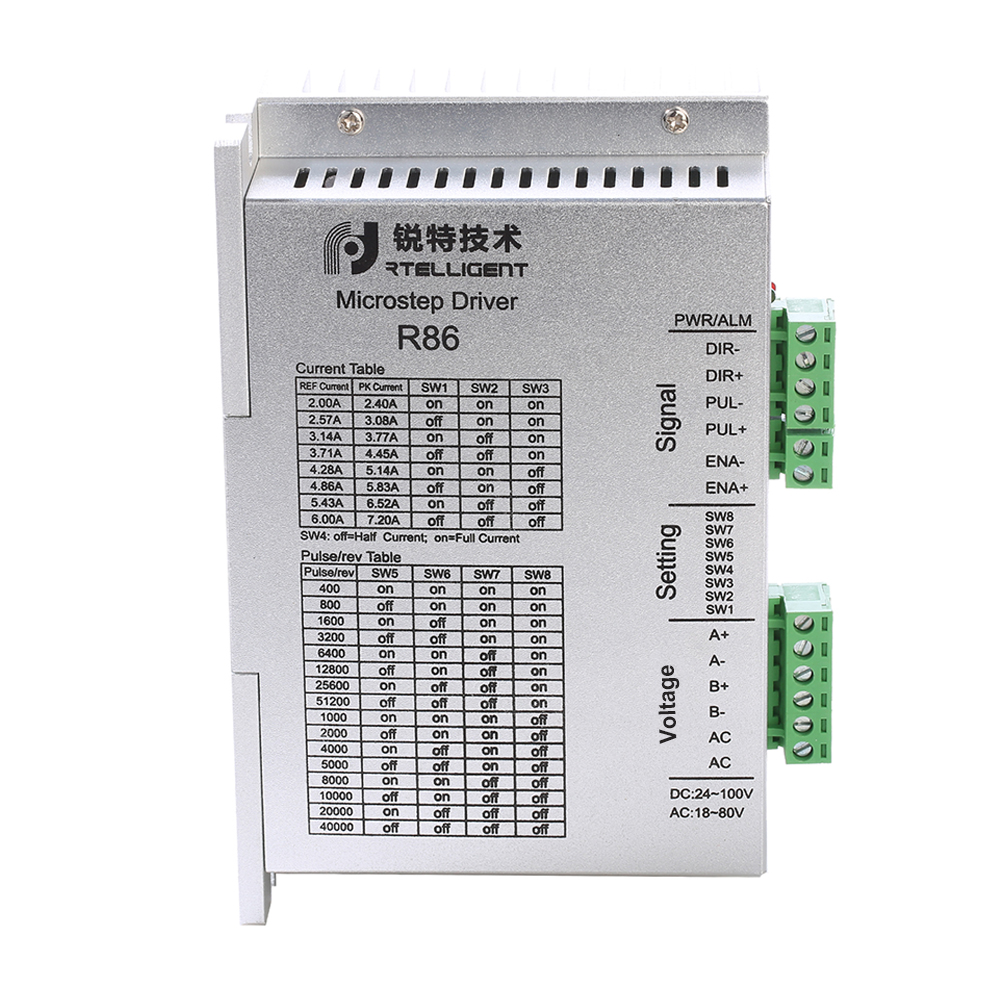

Switch Stepper Drive

INTRODUCTION

Bipolar Stepper Motors

Comparision between Switch Stepper Motor and AC speed regulating Motor

IO Speed-regulating Stepper motor

  • The switch speed motor control stepper comes with S-type acceleration and deceleration, stable start and stop, low noise, and precise adjustable speed. The motor self-locks when the 10 speed stepper stops.
Bipolar Stepper Motors

AC Speed regulating motor

  • The AC speed regulating motor has no acceleration or deceleration, the start and stop jitters are large, and the running noise is loud. The speed is adjustable but not accurate. The ordinary speed regulating motor has no self-locking force, and the stopping state is not stable.
Bipolar Stepper Motors

Technical Specifications

Model Peak Current A Weight kg Input voltage rrange Dimension MM Matching Motor
Single axis control
Switch speed regulating type
R42-IO 2.2 0.1 18-48VDC 92.6X56X21 open loop below 42mm
R60-IO 5.6 0.3 18-50VDC 118X76X33 open loop below 60mm
R86-IO 7.2 0.6 18-80VAC 151 X97X52 open loop below 86mm
R110PLUS-IO 8 0.9 110-230VAC 178X97X52 open loop below 110mm
R130-IO 8 1.3 110-230VAC 203X147X78 open loop below 130mm
Potentiometer speed regulating type
R42-IR 2.2 0.1 18-48VDC 92.6X 56X21 open loop below 42mm
R60-IR 5.6 0.3 18-50VDC 118X76X33 open loop below 60mm
R86-IR 7.2 0.6 18-80VAC 151 X97X52 open loop below 86mm

Multi axis - Stepper Drive

INTRODUCTION

Bipolar Stepper Motors

FEATURES

Multi control methods for customer choices

  • Multi-axis series drive support pulse or switch control, two axis motor can be independent or synchronous operation, suitable for a variety of applications

Save labour & shortening debugging time

  • The number of drives that need to be debugged is halved, saving labor and time costs for debugging devices

Save space & facilitate customer design

  • Compared with traditional drives, the multi-axis series drive can save 40 to 60% of the installation space and facilitate customer layout

Save cost & improve equipment competitiveness

  • While saving space and labor, the multi-axis series can also save drive costs and improve the overall competitiveness of the equipment

Technical Specifications

Model Peak Current A Weight kg Input voltage rrange Dimension MM Matching Motor
Mult-axis control series
Speed regulating
R42-D 2.2 0.2 18-50VDC 118 X 76 X 25 open loop below 42mm
R60-D 5.6 0.3 18-50VDC 118 X 76 X 33 open loop below 60mm
Pulse
R42X2 2.2 0.2 18-50VDC 118 X 76 X 25 open loop below 42mm
R60X2 5.6 0.4 18-48VDC 132 X 82 X 29 open loop below 60mm
R60X3 5.6 0.5 18-48VDC 175 X 95 X 31 open loop below 60mm
Field Bus
ECR60X2 6.0 0.5 18-80VDC 175 X 98 X 33 open loop below 60mm
ECT60X2 6.0 0.5 18-80VDC 175 X 98 X 33 closed loop below 60mm

Reducer Stepper Motor

INTRODUCTION

Transmission Stepper Reducer Technical Specification

Model Input dimension (Motor insertion end) Output dimension (Client installation end) Length
Shaft diameter Boss diameter Mounting hole distance Mounting hole size Shaft diameter Boss diameter Mounting hole distance Mounting hole size L1 L2
42PRF-□* 5 22 31.0 3.5 8 25 P.C.D.35 M4 43 53
57PLF-□* 8 38 47.1 M4 14 40 47.1 5.5 53 70
86PLF-□* 14 73 69.6 M6 14 73 69.6 M6 83 97

42PRF Series Dimensions (mm)

Bipolar Stepper Motors

57PLF Series Dimensions (mm)

Bipolar Stepper Motors

86PLF Series Dimensions (mm)

Bipolar Stepper Motors

Precision Stepper Reducer Technical Specification

Model Input dimension (Motor insertion end) Output dimension (Client installation end) Length
Shaft diameter Boss diameter Mounting hole distance Mounting hole size Shaft diameter Boss diameter Mounting hole distance Mounting hole size L1 L2
42PLX-□ 5 22 31.0 3.5 10 35 P.C.D.50 3.5 62 77
60PLX-□ 8 38 47.1 M4 14 50 P.C.D.70 5.5 77 95
90PLX-□ 14 73 69.6 M6 20 80 P.C.D.100 6.5 110 130

42Plx Series Dimensions (mm)

Bipolar Stepper Motors

60plx Series Dimensions (mm)

Bipolar Stepper Motors

90PLX Series Dimensions (mm)

Bipolar Stepper Motors
